Led Driver Schematic Diagram Circuit Diagram LED Driver Circuit. The schematic of the LED driver circuit we will build is shown below: When the switch of the circuit is open, no current flows to the base of the transistor. Therefore, the transistor cannot turn on. Bipolar junction transistors need base current and sufficient positive voltage to the collector in order to provide amplification. 2) Using Transformerless Capacitive Power Supply. The next 1 watt LED driver I have explained below shows how to build a few simple 220 V or 110 V operated 1 watt LED driver circuit,that would cost you not more 1/2 a dollar, excluding the LED of course.. I have already discussed capacitive type of power supply in a couple posts, like in LED tube light circuit and in a transformerless power ๐ก DIY 220V LED Driver Circuit - No Transformer Needed! โก๐Looking for a simple LED driver circuit to power high-wattage LEDs directly from 220V AC? In this
This instructable will give you a blow-by-blow of all the different types of circuits for powering Big LED's, everything from resistors to switching supplies, with some tips on all of them, and of course will give much detail on my new simple Power LED driver circuits and when/how to use them (and i've got 3 other instructables so far that use Simple Basic LED Circuit. Step 1: 3 Volt Basic LED Circuit With 10 Ohms Resistor. The above diagram shows a 3V LED circuit, in this circuit there are two AA cells are used. When you are operating an LED with 3V you have to use minimum 10 ohms resistor . Simple 6 Watt SMPS LED Driver Circuit. The following design depicts a simple 6 watt driver example using a cheap commercial SMPS board. Simply by adding a current controller stage between the SMPS and the LEDs, we transform the SMPS circuit into a fully compatible LED driver module for the 6 watt LEDs. Parts List. T1 = TIP122. T2 = 2N2222

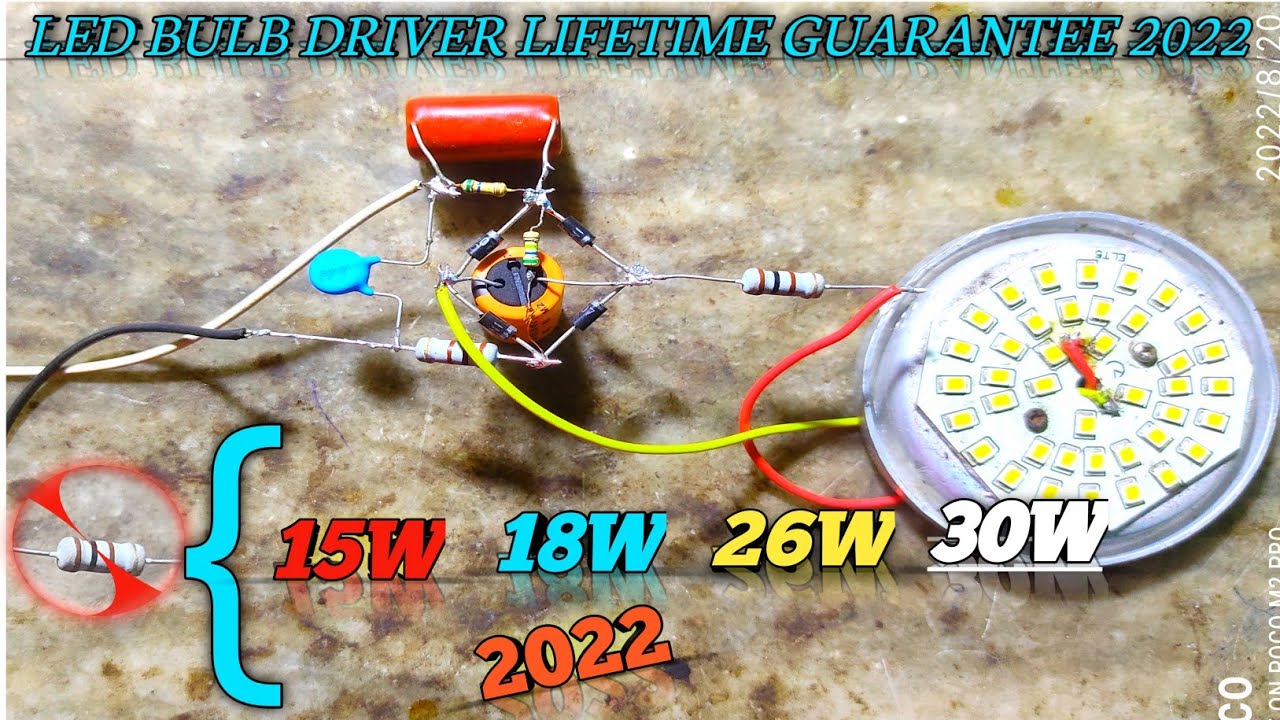

How to make Simple LED Driver Circuit Diagram

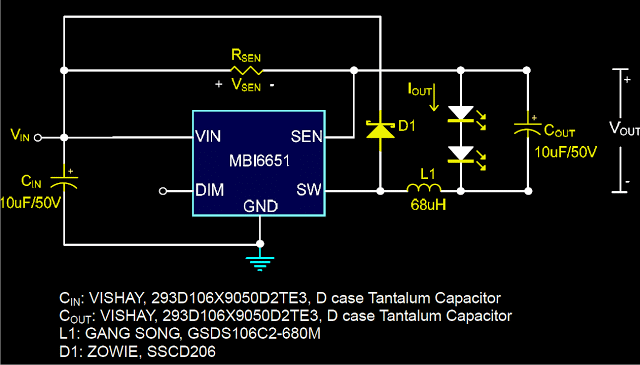

Here's a really simple and inexpensive ($1) LED driver circuit. The circuit is a "constant current source", which means that it keeps the LED brightness constant no matter what power supply you use or surrounding environmental conditions you subject the LED's to. Or to put in another way: "this is better than using a resistor". In this article I have explained a simple 1 amp constant current LED driver circuit using the IC MBI6651 from MACROBLOCK. The IC has been specifically designed for operating high power LEDs safely by providing a constant current output. The circuit includes very few external components and therefore becomes very easy to assemble at home. A LED driver circuit is an electronic device or circuitry that regulates the power supply to an LED (Light-Emitting Diode) or an array of LEDs. LEDs require
