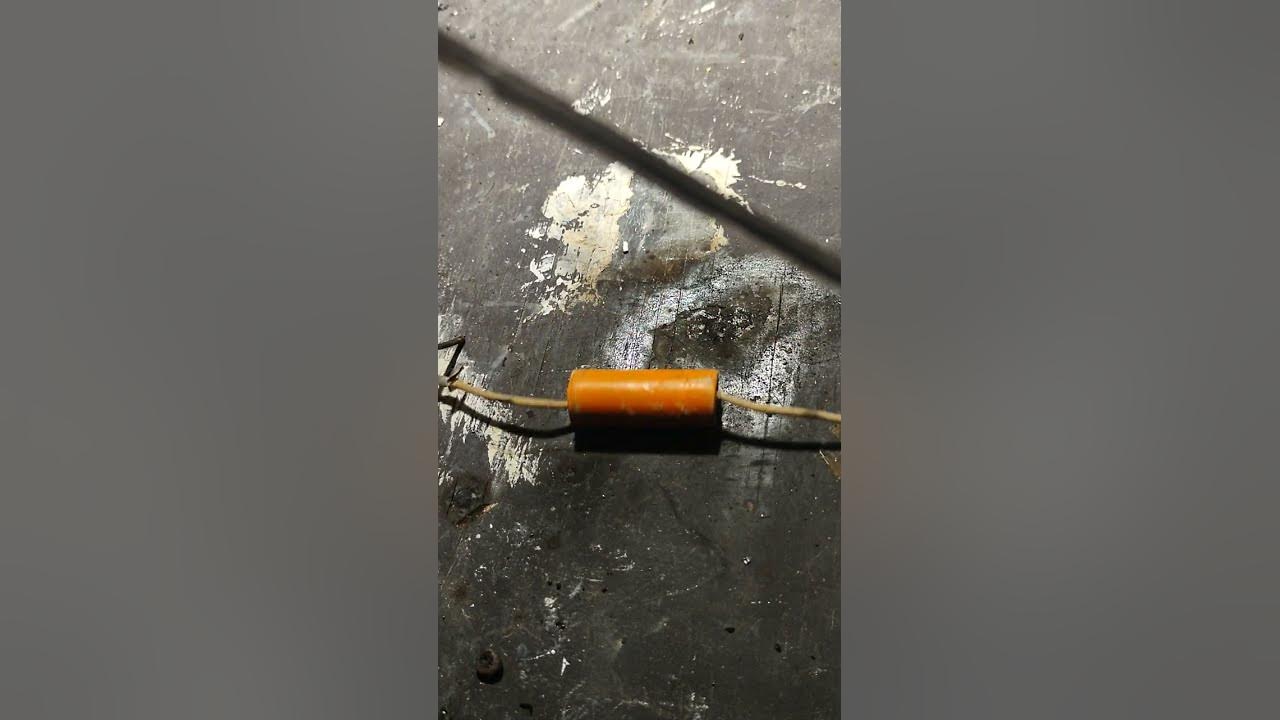

High voltage capacitor damage Circuit Diagram A busted capacitor can be obviously broken (leaking brownish fluid, corroded, or with the leads severed), but sometimes it's subtle. The top of a blown capacitor will be slightly bent outwards in a convex shape, rather than flat or slightly indented inwards like a working capacitor. See the photos above for examples.
The main fix of broken things seem to always be replacing the capacitors. The majority of nowadays broken electronic devices have exactly the same fault: age 1. By Look/Feel: Look for a bulged top on the capacitor. You may also feel that the vent has burst. One way to confirm suspicion of a bulged capacitor is to place a ruler on top of the capacitor with the edge touching the top. If the ruler will not stay flat, the capacitor is bulged. Capacitance: Choose a replacement capacitor with the same capacitance value as the faulty one especially if it was used in timing circuits. If the capacitor was used for voltage smoothing, larger capacitances will work as well. Voltage rating: Pick a capacitor with a voltage rating that matches or exceeds the original one. In most cases, a
How to Fix a Capacitor on a Motherboard: A Step Circuit Diagram
Clean with alcohol. Cut copper repair foil to size of original pad plus the 2-3mm of exposed trace--it will look like a rectangle with a chimney. Tin the repair foil and the 2-3mm, underside portion. Epoxy the foil in original place, but NOT the 3mm portion (clamp the whole piece securely). When cured, solder the capacitor positive side first.
Additional Repairs: If other components in the device are damaged or require repair in addition to the capacitor, this can impact the overall cost of service. Warranty Coverage: If the device is still under warranty, the cost of capacitor replacement may be covered by the warranty, reducing or eliminating out-of-pocket expenses for the owner.
Blown Capacitor:A Comprehensive Guide to Diagnosis and Replacement 2025 Circuit Diagram
Electrolytic capacitor replacement (recapping) is one of the most common repairs on today's electronics. It's also among the easiest electronic repairs most
